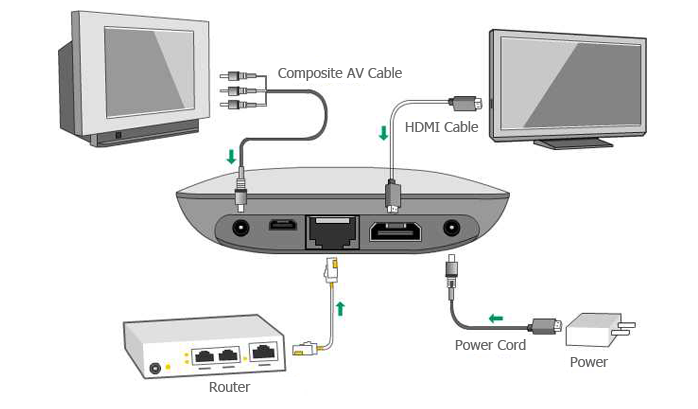

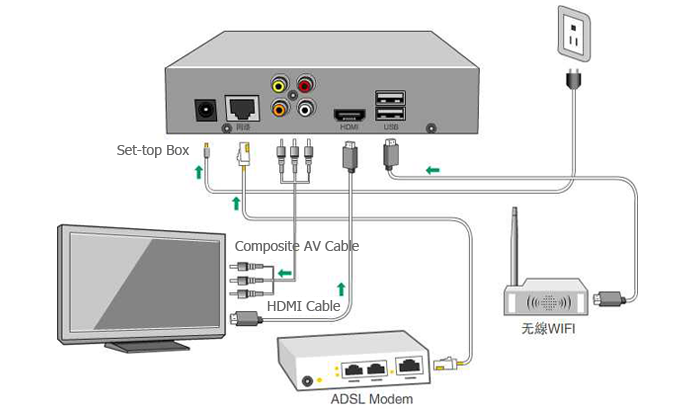

Step 1: Connect your TV (HDMI cable is recommended for high resolution viewing experience)
For HD Television
Connect one end of the HDMI cable to the iTalkBB TV Box and the other end to the HDMI port on your television.
For Traditional Television
If your television does not have a HDMI port, connect the iTalkBB TV Box and your television with the composite AV cable following the three different colors.
2
Step 2: Connect to the Internet
Wireless Connection

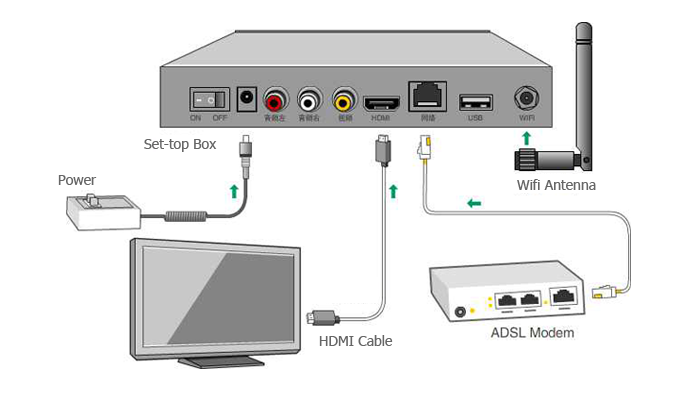

Install the Wifi Antenna onto the iTalkBB TV Box.
Wired Connection
Connect one end of the internet cable to the "Internet" port of the iTalkBB TV Box and the other end to your Modem.
3
Step 3: Connect to power
Connect the iTalkBB TV Box to the power with the power adaptor.
4
Step 4: Configure network settings
Wireless Connection
Turn on the TV Box and your television. Select "Quick Network Setup" and follow instructions on the screen.
Wired Connection
After correctly connecting the TV Box to your television and the Internet, turn on the TV Box and your television and start watching.
Manually Network Setup: Select this method if you need to manually enter the name of your network, IP address and DNS.
